Domain & Geometry
The jno.domain class manages mesh generation, physical group labelling, and sampling of collocation points. It wraps pygmsh for mesh generation and meshio for I/O.
Domain Gallery

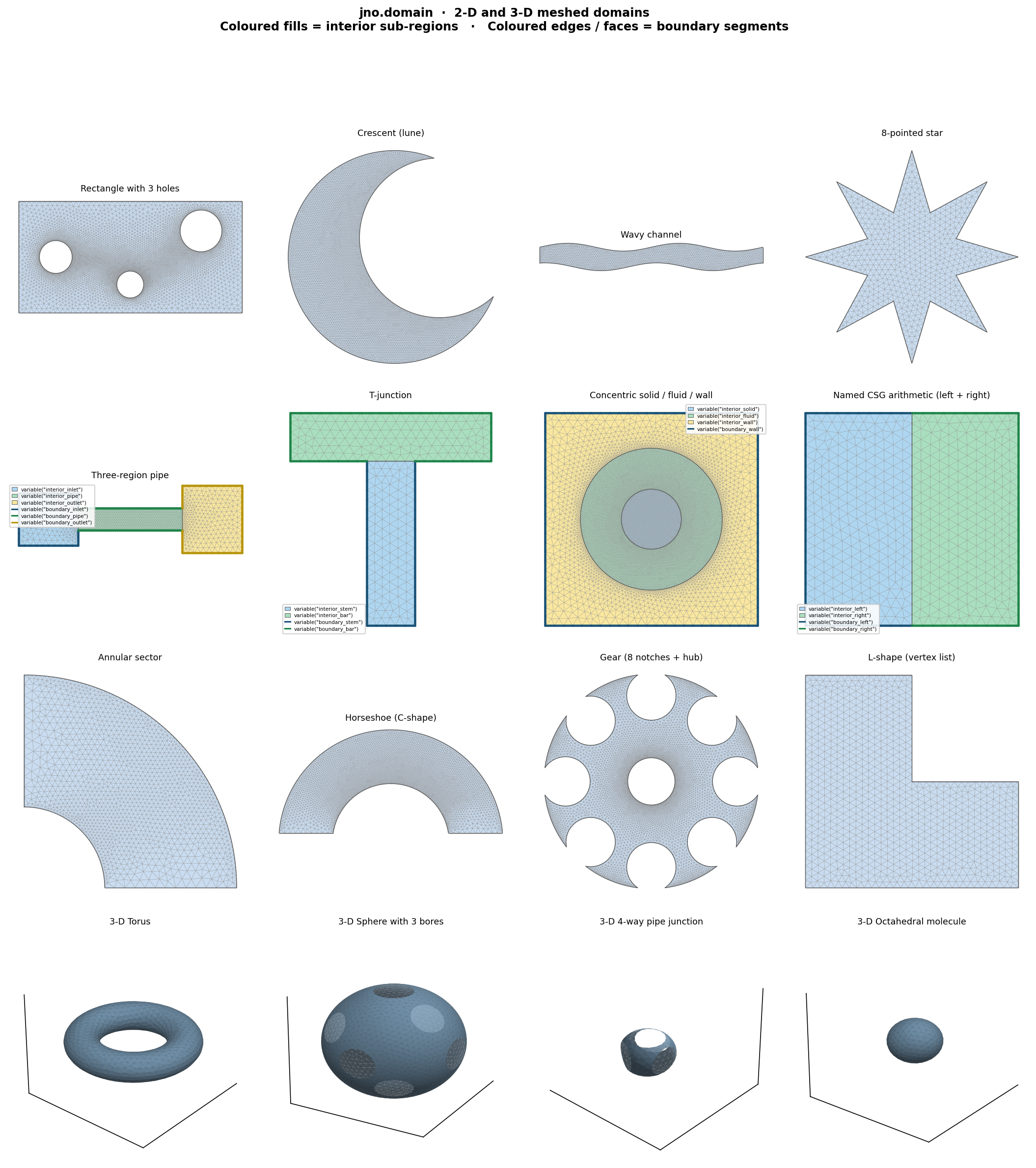

16 meshed domains illustrating the full range of jno.domain construction paths — 12 two-dimensional and 4 three-dimensional. Coloured fills show interior sub-regions (variable("interior_<name>")); coloured edges/faces show boundary segments (variable("boundary_<name>")).
from shapely.geometry import box, Point
geo = box(0, 0, 3, 1.5)
geo = geo.difference(Point(0.5, 0.75).buffer(0.22))
geo = geo.difference(Point(1.5, 0.38).buffer(0.18))
geo = geo.difference(Point(2.45, 1.1).buffer(0.28))
dom = jno.domain(geo).build_mesh(0.07)
x, y = dom.variable("interior")
xb, yb = dom.variable("boundary")
from shapely.geometry import box
dom = jno.domain({
"inlet": box(0.0, 0.15, 0.8, 0.85),
"pipe": box(0.8, 0.35, 2.2, 0.65),
"outlet": box(2.2, 0.05, 3.0, 0.95),
}).build_mesh(0.08, sizes={"pipe": 0.025})
x_in, y_in = dom.variable("interior_inlet")
x_p, y_p = dom.variable("interior_pipe")
x_out,y_out = dom.variable("interior_outlet")
xb_in, yb_in = dom.variable("boundary_inlet") # inlet face
xb_out,yb_out = dom.variable("boundary_outlet") # outlet face
from shapely.geometry import box, Point
solid = Point(0, 0).buffer(0.22, resolution=40)
fluid = Point(0, 0).buffer(0.52, resolution=64).difference(solid)
wall = box(-0.78, -0.78, 0.78, 0.78).difference(
Point(0, 0).buffer(0.52, resolution=64))
dom = jno.domain(
{"solid": solid, "fluid": fluid, "wall": wall}
).build_mesh(0.07, sizes={"solid": 0.015, "fluid": 0.025})
x_s, y_s = dom.variable("interior_solid")
x_f, y_f = dom.variable("interior_fluid")
x_w, y_w = dom.variable("interior_wall")
xb, yb = dom.variable("boundary_wall") # outer square boundary
from shapely.geometry import box
left = jno.domain(box(0, 0, 0.5, 1), name="left")
right = jno.domain(box(0.5, 0, 1, 1), name="right")
dom = (left + right).build_mesh(0.05)
x_l, y_l = dom.variable("interior_left")
x_r, y_r = dom.variable("interior_right")
xb_l, yb_l = dom.variable("boundary_left")
xb_r, yb_r = dom.variable("boundary_right")
import numpy as np
from shapely.geometry import Point
gear = Point(0, 0).buffer(1.0, resolution=128)
for i in range(8):
a = 2 * np.pi * i / 8
gear = gear.difference(
Point(np.cos(a) * 0.80, np.sin(a) * 0.80).buffer(0.23, resolution=12))
gear = gear.difference(Point(0, 0).buffer(0.22, resolution=48))
dom = jno.domain(gear).build_mesh(0.05)
import gmsh, meshio, os, tempfile
def constructor(geo):
# geo is a pygmsh.geo.Geometry — gmsh is already initialised.
# We use the OCC kernel directly and return a meshio.Mesh so that
# jno bypasses geo.generate_mesh() entirely.
gmsh.option.setNumber("Mesh.CharacteristicLengthMax", 0.12)
gmsh.model.occ.addTorus(0, 0, 0, 1.0, 0.35) # major r=1.0, tube r=0.35
gmsh.model.occ.synchronize()
vols = [t for _, t in gmsh.model.getEntities(3)]
surfs = [t for _, t in gmsh.model.getEntities(2)]
gmsh.model.addPhysicalGroup(3, vols, name="interior")
gmsh.model.addPhysicalGroup(2, surfs, name="boundary")
gmsh.model.mesh.generate(3)
with tempfile.NamedTemporaryFile(suffix=".msh", delete=False) as f:
fname = f.name
gmsh.write(fname)
mesh = meshio.read(fname); os.unlink(fname)
return mesh, 3, 0.12
dom = jno.domain(constructor=constructor)
x, y, z = dom.variable("interior")
xb, yb, zb = dom.variable("boundary")
import gmsh, meshio, os, tempfile
def constructor(geo):
gmsh.option.setNumber("Mesh.CharacteristicLengthMax", 0.09)
s = gmsh.model.occ.addSphere(0, 0, 0, 1.0)
cuts = []
for dx, dy, dz in [(2.2, 0, 0), (0, 2.2, 0), (0, 0, 2.2)]:
cuts.append((3, gmsh.model.occ.addCylinder(
-dx/2, -dy/2, -dz/2, dx, dy, dz, 0.28)))
gmsh.model.occ.cut([(3, s)], cuts)
gmsh.model.occ.synchronize()
vols = [t for _, t in gmsh.model.getEntities(3)]
surfs = [t for _, t in gmsh.model.getEntities(2)]
gmsh.model.addPhysicalGroup(3, vols, name="interior")
gmsh.model.addPhysicalGroup(2, surfs, name="boundary")
gmsh.model.mesh.generate(3)
with tempfile.NamedTemporaryFile(suffix=".msh", delete=False) as f:
fname = f.name
gmsh.write(fname)
mesh = meshio.read(fname); os.unlink(fname)
return mesh, 3, 0.09
dom = jno.domain(constructor=constructor)
x, y, z = dom.variable("interior")
xb, yb, zb = dom.variable("boundary")
import gmsh, meshio, numpy as np, os, tempfile
def constructor(geo):
gmsh.option.setNumber("Mesh.CharacteristicLengthMax", 0.09)
s = gmsh.model.occ.addSphere(0, 0, 0, 0.38)
pieces = [(3, s)]
for i in range(3): # 3 horizontal arms at 120°
angle = 2 * np.pi * i / 3
dx, dy = 0.90 * np.cos(angle), 0.90 * np.sin(angle)
pieces.append((3, gmsh.model.occ.addCylinder(0, 0, 0, dx, dy, 0, 0.24)))
pieces.append((3, gmsh.model.occ.addCylinder(0, 0, 0, 0, 0, 1.0, 0.24)))
gmsh.model.occ.fuse([pieces[0]], pieces[1:])
gmsh.model.occ.synchronize()
vols = [t for _, t in gmsh.model.getEntities(3)]
surfs = [t for _, t in gmsh.model.getEntities(2)]
gmsh.model.addPhysicalGroup(3, vols, name="interior")
gmsh.model.addPhysicalGroup(2, surfs, name="boundary")
gmsh.model.mesh.generate(3)
with tempfile.NamedTemporaryFile(suffix=".msh", delete=False) as f:
fname = f.name
gmsh.write(fname)
mesh = meshio.read(fname); os.unlink(fname)
return mesh, 3, 0.09
dom = jno.domain(constructor=constructor)
x, y, z = dom.variable("interior")
xb, yb, zb = dom.variable("boundary")
import gmsh, meshio, os, tempfile
def constructor(geo):
gmsh.option.setNumber("Mesh.CharacteristicLengthMax", 0.10)
s0 = gmsh.model.occ.addSphere(0, 0, 0, 0.42)
pieces = [(3, s0)]
for pos in [(0.75,0,0),(-0.75,0,0),(0,0.75,0),(0,-0.75,0),(0,0,0.75),(0,0,-0.75)]:
pieces.append((3, gmsh.model.occ.addSphere(*pos, 0.28)))
gmsh.model.occ.fuse([pieces[0]], pieces[1:])
gmsh.model.occ.synchronize()
vols = [t for _, t in gmsh.model.getEntities(3)]
surfs = [t for _, t in gmsh.model.getEntities(2)]
gmsh.model.addPhysicalGroup(3, vols, name="interior")
gmsh.model.addPhysicalGroup(2, surfs, name="boundary")
gmsh.model.mesh.generate(3)
with tempfile.NamedTemporaryFile(suffix=".msh", delete=False) as f:
fname = f.name
gmsh.write(fname)
mesh = meshio.read(fname); os.unlink(fname)
return mesh, 3, 0.10
dom = jno.domain(constructor=constructor)
x, y, z = dom.variable("interior")
xb, yb, zb = dom.variable("boundary")
Constructing a domain
For 2-D problems, the recommended path is jno.domain(geo) — define your geometry with shapely CSG arithmetic, call .build_mesh(), and you have a fully meshed domain that supports .integrate() and FD derivatives. For 3-D geometry, PML absorbing layers, or cases that need raw gmsh control, use a built-in named constructor or a custom constructor instead.
1. jno.domain — shapely → gmsh (2-D, recommended)
Basic usage
Pass any shapely geometry as the first argument. Two auto-generated tags are always available: "interior" (all interior points) and "boundary" (the outer boundary):
import jno
from shapely.geometry import box, Point
geo = box(0, 0, 2, 1).difference(Point(1, 0.5).buffer(0.3))
dom = jno.domain(geo).mesh(0.05)
x, y = dom.variable("interior")
xb, yb, nx, ny = dom.variable("boundary", normals=True)
For a simple polygon, pass a vertex list directly — no shapely import needed:
Add mesh_size= for a one-liner when no per-region refinement is needed:
CSG arithmetic and named regions
When you construct each piece as a named region, jno tracks the names through arithmetic. That lets you sample sub-regions by name and refine each independently at mesh time — which is not possible if you compose everything in shapely first and pass a single anonymous geometry.
Pass a dict of named regions directly, or use name= when building a single piece:
from shapely.geometry import box, Point
fluid_geo = box(0, 0, 1, 1).difference(Point(0.5, 0.5).buffer(0.2))
solid_geo = Point(0.5, 0.5).buffer(0.2)
dom = jno.domain({
"fluid": fluid_geo,
"solid": solid_geo,
}).build_mesh(0.08, sizes={"solid": 0.01})
x_f, y_f = dom.variable("interior_fluid") # fluid sub-region only
x_s, y_s = dom.variable("interior_solid") # solid sub-region only
xb, yb = dom.variable("boundary_solid") # fluid-solid interface
You can also apply CSG operators directly on jno.domain instances — the source-region registry is merged and preserved on every operation:
| Operator | Method | Effect |
|---|---|---|
a + b or a \| b |
.union(b) |
union |
a - b |
.difference(b) |
A minus B |
a & b |
.intersection(b) |
overlap only |
a ^ b |
.symmetric_difference(b) |
XOR |
left = jno.domain(box(0, 0, 0.5, 1), name="left")
right = jno.domain(box(0.5, 0, 1, 1), name="right")
dom = (left + right).build_mesh(0.05)
x_l, y_l = dom.variable("interior_left")
x_r, y_r = dom.variable("interior_right")
Auto-generated tags for a domain with named regions:
| Tag | Contents |
|---|---|
"interior" |
all interior points |
"boundary" |
full outer boundary |
"interior_<name>" |
interior of the named sub-region |
"boundary_<name>" |
edges of the named sub-region |
For explicit BC surfaces (e.g. an inlet face that is a subset of a boundary), use .add_boundary_segments(tag, segments) to register a named edge set.
build_mesh accepts sizes={"name": h} as a short spelling of region_mesh_sizes=.
Custom samplers (mesh-free path only)
When build_mesh() is not called, interior points are drawn by uniform rejection sampling inside each polygon. Pass a callable to override this per region or globally. The sampler signature is fn(geometry, n) -> np.ndarray with shape (n, 2).
import numpy as np
from shapely.geometry import box
def grid_sampler(geometry, n):
"""Uniform grid instead of random points."""
minx, miny, maxx, maxy = geometry.bounds
side = int(np.ceil(np.sqrt(n)))
xs = np.linspace(minx, maxx, side)
ys = np.linspace(miny, maxy, side)
xx, yy = np.meshgrid(xs, ys)
pts = np.column_stack([xx.ravel(), yy.ravel()])
# filter to inside and return exactly n
from shapely import contains_xy
mask = contains_xy(geometry, pts[:, 0], pts[:, 1])
return pts[mask][:n]
# Single-region: sampler= applies to all interior tags
dom = jno.domain(box(0, 0, 1, 1), sampler=grid_sampler)
x, y, _ = dom.variable("interior", (256, None))
# Multi-region: samplers= sets a different strategy per named region
dom = jno.domain({
"fluid": box(0, 0, 1, 1).difference(box(0.3, 0.3, 0.7, 0.7)),
"solid": box(0.3, 0.3, 0.7, 0.7),
}, samplers={"solid": grid_sampler}) # fluid uses the default, solid uses grid
You can also override the sampler for a single variable() call:
2. Built-in named constructors
For standard shapes, jno ships named constructors under jno.domain.*. Pass one to jno.domain(constructor=...) — this is the recommended route for 1-D problems, 3-D boxes, and PML layers:
| Constructor | Dim | Signature | Physical groups |
|---|---|---|---|
line |
1D | line(x_range, mesh_size) |
interior, left, right, boundary |
rect |
2D | rect(x_range, y_range, mesh_size) |
interior, boundary, bottom, top, left, right |
equi_distant_rect |
2D | equi_distant_rect(x_range, y_range, nx, ny) — structured |
same as rect |
disk |
2D | disk(center, radius, mesh_size, num_points) |
interior, boundary |
l_shape |
2D | l_shape(size, mesh_size, separate_boundary=False) |
interior, boundary (+ per-side when separate_boundary=True) |
rectangle_with_hole |
2D | rectangle_with_hole(outer_size, hole_size, mesh_size, ...) |
interior, boundary, hole sides |
rectangle_with_holes |
2D | rectangle_with_holes(outer_size, holes=[{...}], mesh_size, ...) |
interior, boundary, hole_boundary (+ per-hole groups) |
rect_pml |
2D | rect_pml(..., pml_thickness_top, pml_thickness_bottom) |
+ pml_top, pml_bottom — wave-equation absorbing layers |
cube |
3D | cube(x_range, y_range, z_range, mesh_size) |
interior, boundary, 6 face groups |
Per-constructor quirks live in the docstrings — reach them with help(jno.domain.rect_pml) and friends.
3. Custom constructor (advanced / 3-D)
Pass any callable as constructor=. It is called with a pygmsh.geo.Geometry context object (geo) which has already called gmsh.initialize().
2-D — pygmsh geo kernel (points, lines, surfaces):
def my_geometry(mesh_size=0.1):
def constructor(geo):
p0 = geo.add_point([0, 0], mesh_size=mesh_size)
# ... add lines, surfaces, physical groups ...
geo.add_physical(surface, "interior")
geo.add_physical(lines, "boundary")
return geo, 2, mesh_size
return constructor
dom = jno.domain(constructor=my_geometry(mesh_size=0.05))
3-D — gmsh OCC kernel (spheres, tori, boolean ops):
Because gmsh is already initialised when the constructor runs, you can call gmsh.model.occ.* directly and return a meshio.Mesh — jno will use it as-is without re-meshing:
import gmsh, meshio, os, tempfile
def constructor(geo):
gmsh.option.setNumber("Mesh.CharacteristicLengthMax", 0.12)
gmsh.model.occ.addTorus(0, 0, 0, 1.0, 0.35)
gmsh.model.occ.synchronize()
vols = [t for _, t in gmsh.model.getEntities(3)]
surfs = [t for _, t in gmsh.model.getEntities(2)]
gmsh.model.addPhysicalGroup(3, vols, name="interior")
gmsh.model.addPhysicalGroup(2, surfs, name="boundary")
gmsh.model.mesh.generate(3)
with tempfile.NamedTemporaryFile(suffix=".msh", delete=False) as f:
fname = f.name
gmsh.write(fname)
mesh = meshio.read(fname); os.unlink(fname)
return mesh, 3, 0.12
dom = jno.domain(constructor=constructor)
x, y, z = dom.variable("interior")
xb, yb, zb = dom.variable("boundary")
Boolean operations (cut, fuse, intersect) work the same way — see the gallery tabs 13–16 for complete sphere-with-bores, pipe-junction, and molecule examples.
4. Pre-meshed file
Load a .msh, .vtk, .med, … file directly — physical groups become .variable(tag) keys:
5. Point cloud — jno.domain.from_array
When the points are already known (sensor coordinates, observation grids, externally generated meshes), skip geometry entirely:
import numpy as np
dom = jno.domain.from_array({"obs": sensor_coords})
dom = jno.domain.from_array({
"interior_sensors": interior_coords,
"boundary_sensors": boundary_coords,
})
Trade-off: no mesh, no .integrate(), no FD.
Sampling Variables
from jax import numpy as jnp
# Unpack spatial coordinates and (if time is set) a time variable
x, y, t = domain.variable("interior")
# Slice a specific coordinate range [0, None] means "all"
x, y = domain.variable("interior", (None, None))
# With boundary normals (outward unit normals at each boundary point)
xb, yb, tb, nx, ny = domain.variable("boundary", normals=True)
# With boundary normals AND view-factor matrix (for radiation problems)
xb, yb, tb, nx, ny, VF = domain.variable("boundary", normals=True, view_factor=True)
# Inject point data (sensor or observation locations)
xs, ys = domain.variable("sensor", 0.5 * jnp.ones((2, 1, 2)), point_data=True, split=True)
# Attach a tensor (e.g., spatially-varying PDE parameter, one row per batch sample)
k = domain.variable("k", jnp.array([[1.0], [2.0], [3.0]])) # (B, 1)
Time-Dependent Problems
domain = jno.domain(
constructor=jno.domain.rect(mesh_size=0.05),
time=(t_start, t_end, n_steps),
)
x, y, t = domain.variable("interior") # interior + time
x0, y0, t0 = domain.variable("initial") # initial slice (t=0)
The solver automatically uses jax.lax.scan over time steps.
Operator Learning (Multiple Batch Samples)
Multiply a domain by an integer B to replicate it across B independent batch samples. This is the standard setup for learning a PDE solution operator over a family of parameters.
domain = 40 * jno.domain(constructor=jno.domain.rect(mesh_size=0.05))
# Attach B×4 parameter vectors
theta = ... # shape (B, 4)
θ = domain.variable("θ", theta)
Mesh Connectivity (for Finite Differences and Finite Elements)
Some schemes (e.g., scheme="finite_difference" in jnn.grad) require mesh topology to be pre-processed. jno.domain(geo).build_mesh() does this automatically. For the pygmsh constructor path, pass compute_mesh_connectivity=True explicitly:
