Laplace 1D

Download .py Back to chapter

The smallest complete jNO example. Solves the 1-D Laplace equation with non-homogeneous Dirichlet boundary conditions and a hard-enforced linear-interpolant ansatz.

Problem Setup

u''(x) = 0,   x in [0, 1],   u(0) = 0,  u(1) = 1

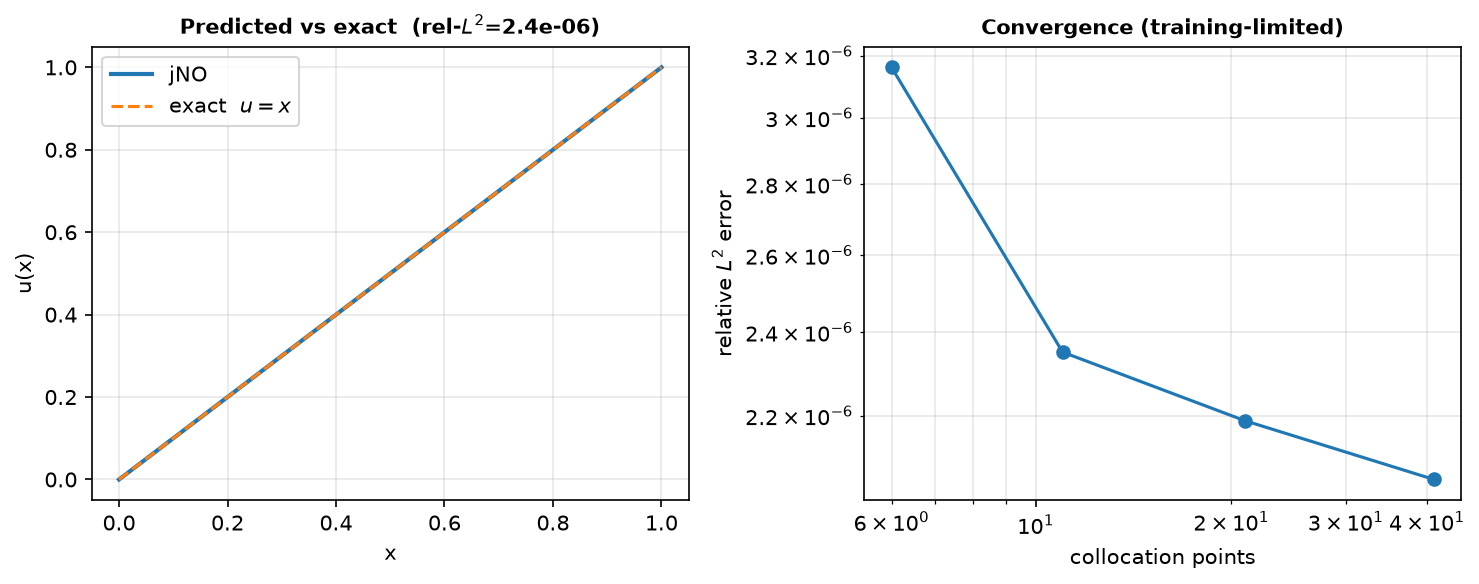

Exact solution: u(x) = x (the straight line between the two boundary values).

Step 1: Create the Domain

domain = jno.domain.line(mesh_size=0.1)
x, _ = domain.variable("interior")

Step 2: Build the Network with a Non-Homogeneous Hard Ansatz

The boundary values are non-zero (u(0)=0, u(1)=1), so the multiplicative x(1-x) trick alone won't enforce them. Instead, use a linear interpolant + correction ansatz:

u_net = jno.nn.wrap(
    foundax.mlp(in_features=1, hidden_dims=32, num_layers=3, key=jax.random.PRNGKey(0))
).optimizer(optax.adam(optax.exponential_decay(1e-3, 10, 0.5, end_value=1e-5)))

u = x + x * (1 - x) * u_net(x)

Why this works:

  • x alone satisfies u(0)=0 and u(1)=1 exactly — it's the linear interpolant of the BCs.
  • x*(1-x) vanishes at both endpoints, so u_net(x) can never break the BCs no matter what it learns.
  • The network only has to learn the deviation from the linear interpolant. For pure Laplace u''=0 that deviation is exactly zero, so this is a clean test of whether the optimiser can drive u_net to the constant-zero function.

Step 3: Build the PDE Residual

pde = u.d2(x)  # Laplace: u'' = 0

.d2(x) is the second-derivative shortcut on any Placeholder. Equivalent to u.d(x).d(x) but more compact.

Step 4: Solve

crux = jno.core([pde.mse])
history = crux.solve(5000)

What To Notice

  • The non-homogeneous BCs require an ansatz that adds to a satisfying solution rather than just multiplying. The general recipe is u = boundary_lift(x) + zero_at_boundary(x) * net(x).
  • For more interesting Poisson-style problems with a non-zero forcing, see Poisson 1D — same domain, but adds a soft-BC pattern with scheme="finite_difference".
  • This is a trivial PDE in the sense that the exact solution is in the trial-space class; jNO is being asked to confirm convergence, not discover anything new.

Download full script Back to 01 Basics

Script Snippet

"""01 — 1-D Laplace equation (simplest possible PINN)"""

import foundax
import jax
import optax

import jno

domain = jno.domain.line(mesh_size=0.1)
x, _ = domain.variable("interior")

u_exact = x

net = jno.nn.wrap(foundax.mlp(in_features=1, hidden_dims=32, num_layers=3, key=jax.random.PRNGKey(0)))
net.optimizer(optax.adam(optax.exponential_decay(1e-3, 10, 0.5, end_value=1e-5)))

u = (x + x * (1 - x) * net(x)).scalar.bind(x=x)
pde = u.xx  # Laplace: u'' = 0

crux = jno.core([pde.mse])
crux.solve(5000)

_u, _u_exact = crux.eval([u, u_exact])
rel_l2 = float(jax.numpy.linalg.norm(_u - _u_exact) / (jax.numpy.linalg.norm(_u_exact) + 1e-8))
print(f"Relative L2 error: {rel_l2:.4e}")
assert rel_l2 < 1e-1, f"relative L2 error too large: {rel_l2:.3e}"
