Fredholm Integral Equation of the Second Kind

Download .py Back to chapter

This example solves a Fredholm integral equation of the second kind — an equation where the unknown function appears both outside and inside an integral. The exact solution is known, so the trained network's accuracy can be measured directly.

Equation

\[u(x) = f(x) + \int_0^1 x \cdot t \; u(t) \, dt, \qquad x \in [0,1]\]

with forcing term chosen so that the exact solution is

\[u^*(x) = \sin(\pi x)\]

Derivation of f

Substituting \(u^* = \sin(\pi x)\) into the equation:

\[\sin(\pi x) = f(x) + \int_0^1 x \cdot t \cdot \sin(\pi t) \, dt\]

The integral evaluates to (integration by parts):

\[\int_0^1 t \cdot \sin(\pi t) \, dt = \frac{1}{\pi}\]

so \(x \cdot \int_0^1 t \cdot \sin(\pi t) \, dt = x / \pi\), giving:

\[f(x) = \sin(\pi x) - \frac{x}{\pi}\]

Why this is interesting

Integral equations cannot be solved by the standard PINN approach of differentiating pointwise residuals — there is no ODE or PDE to differentiate. The .integrate() operator fills this gap. The key insight here is that the degenerate (separable) kernel \(K(x,t) = x \cdot t\) lets the double-argument integral collapse into a simple product:

\[\int_0^1 x \cdot t \cdot u(t) \, dt = x \cdot \underbrace{\int_0^1 t \cdot u(t) \, dt}_{C}\]

\(C\) is a scalar independent of \(x\). jno computes it with one .integrate() call over the full mesh.

Step 1: Set up the domain

domain = jno.domain.line(mesh_size=0.01)
x, _ = domain.variable("interior")

The 1D mesh on \([0,1]\) doubles as the integration mesh. No separate quadrature rule is needed.

Step 2: Define the forcing term

pi_val = float(jnp.pi)
f = jno.np.sin(π * x) - x / pi_val

Step 3: Build the model

net = jno.nn.wrap(
    foundax.mlp(in_features=1, hidden_dims=64, num_layers=4,
                activation=jax.nn.tanh, key=jax.random.PRNGKey(0))
)
u = net(x)

Step 4: Formulate the residual

# C = ∫₀¹ t · u(t) dt  — scalar, the same for every x
C = (x * u).integrate()

# Pointwise residual  R(xᵢ) = u(xᵢ) − f(xᵢ) − xᵢ · C
residual = u - f - x * C

(x * u).integrate() evaluates the integrand t · u(t) at all mesh nodes (here x is the dummy variable \(t\)), then reduces to a scalar using nodal volume weights. Multiplying by the outer x broadcasts that scalar back to the collocation grid.

Both uses of the network — as the integrand inside C and as the outer u — go through the same shared parameters. Gradients flow through both paths simultaneously.

Step 5: Solve

EPOCHS = 50_000
crux = jno.core([residual.mse])
crux.solve(EPOCHS)

What to notice

  • No boundary conditions are needed. The integral equation is posed on the interior only; boundary values emerge naturally from the trained solution.
  • .integrate() is differentiable. jax.grad and eqx.filter_grad propagate through it, so the scalar \(C\) receives gradient updates alongside the pointwise residual terms.
  • JIT-friendly. Mesh weights are precomputed at domain creation and embedded as JAX constants. The integral adds no overhead beyond a single dot-product per step.
  • Relative L2 error < 5 % is achievable with a modest 4-layer MLP and 50 000 Adam steps.

Script

"""06 — Fredholm integral equation of the second kind"""

from pathlib import Path

import foundax
import jax
import jax.numpy as jnp
import optax

import jno

π = jno.np.pi

# ── Domain ─────────────────────────────────────────────────────────────────────
domain = jno.domain.line(mesh_size=0.01)
x, _ = domain.variable("interior")

domain.summary()

# ── Forcing term  f(x) = sin(πx) − x/π ───────────────────────────────────────
pi_val = float(jnp.pi)
f = jno.np.sin(π * x) - x / pi_val

# ── Model ──────────────────────────────────────────────────────────────────────
net = jno.nn.wrap(
    foundax.mlp(
        in_features=1,
        hidden_dims=64,
        num_layers=4,
        activation=jax.nn.tanh,
        key=jax.random.PRNGKey(0),
    )
)
net.optimizer(
    optax.adam(
        optax.exponential_decay(
            init_value=1e-3,
            transition_steps=5_000,
            decay_rate=0.5,
            end_value=1e-5,
        )
    )
)

u = net(x)

# ── Fredholm residual ──────────────────────────────────────────────────────────
# C = ∫₀¹ t · u(t) dt  — scalar, independent of x.
# .integrate() evaluates the integrand over all mesh nodes and sums with
# nodal volume weights.  Here x is the integration variable (dummy variable t).
C = (x * u).integrate()

# Pointwise residual  R(xᵢ) = u(xᵢ) − f(xᵢ) − xᵢ · C
residual = u - f - x * C

# ── Solve ──────────────────────────────────────────────────────────────────────
EPOCHS = 50_000
crux = jno.core([residual.mse]).print_shapes()
_history = crux.solve(EPOCHS)

# ── Evaluate ───────────────────────────────────────────────────────────────────

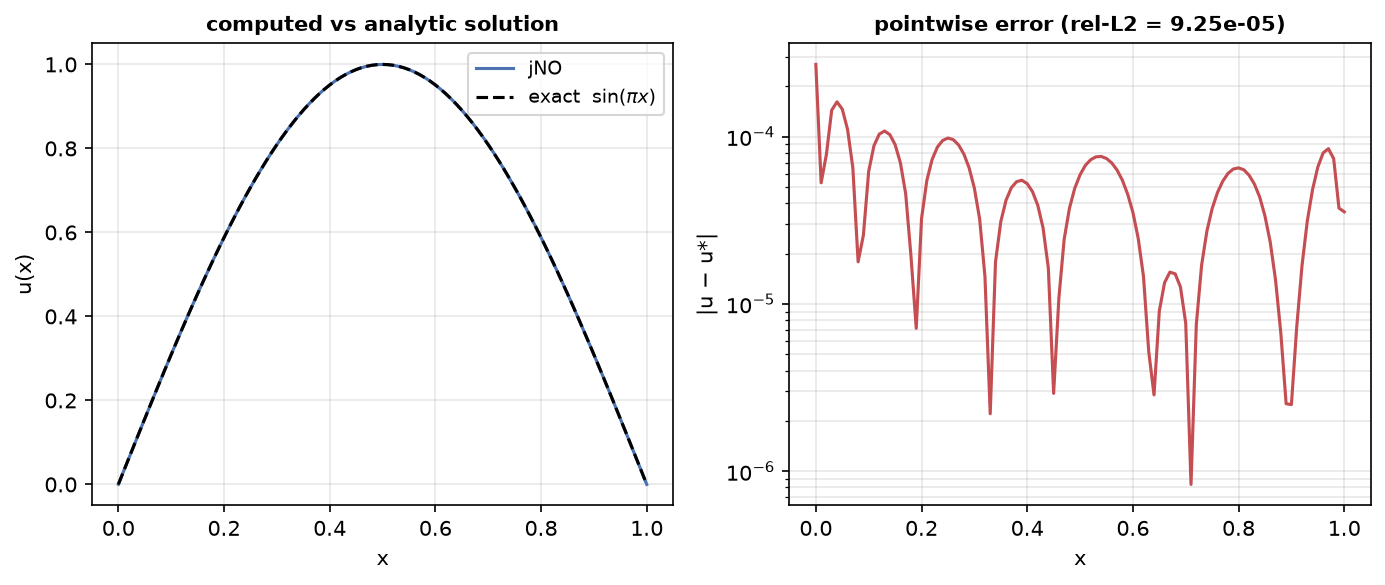

u_exact = jno.np.sin(π * x)
u_pred, u_ref = crux.eval([u, u_exact])

rel_l2 = float(jnp.linalg.norm(u_pred - u_ref) / (jnp.linalg.norm(u_ref) + 1e-8))
print(f"Relative L2 error: {rel_l2:.4e}   (exact solution: u(x) = sin(πx))")

# ── Record result ──────────────────────────────────────────────────────────────
results_file = Path(__file__).parent.parent.parent / "tutorial_results.txt"
with open(results_file, "a") as f_out:
    f_out.write(f"06_integration/fredholm_integral_equation.py | epochs={EPOCHS} | rel_L2={rel_l2:.6e}\n")

assert rel_l2 < 0.05, f"Relative L2 error too large: {rel_l2:.3e}"
