Inverse Parameter

Download .py All tutorials

This example is an inverse problem rather than a field solve: it learns unknown scalar coefficients from residual constraints.

Problem Setup

The script introduces trainable scalar parameters and fits them so synthetic constraints are satisfied.

Step 1: Treat Parameters as Learnable Objects

Instead of only training a neural field, the script creates scalar parameter models that participate in optimization.

A_true, B_true, C_true = 3.14, -2.71, 42.0

domain = jno.Path(0.0, 0.0).line_to(1.0, 0.0).curve(size=0.01).domain()
x, _ = domain.variable("interior")

target = A_true * jno.np.sin(π * x) + B_true * jno.np.cos(π * x) + C_true * x * (1 - x)

k1, k2, k3 = jax.random.split(jax.random.PRNGKey(0), 3)
a = jno.np.parameter((1,), key=k1, name="a")
b = jno.np.parameter((1,), key=k2, name="b")
c = jno.np.parameter((1,), key=k3, name="c")

Step 2: Build Residuals From Data Relationships

The optimization target is a set of algebraic or residual constraints rather than a spatial PDE field.

residual = (a * jno.np.sin(π * x) + b * jno.np.cos(π * x) + c * x * (1 - x)) - target

for net in [a, b, c]:
    net.optimizer(optax.adam(1e-2))

Step 3: Solve and Inspect Learned Coefficients

After optimization, the identified parameters are printed from the trained model set.

crux    = jno.core([residual.mse])
history = crux.solve(30000)

_a, _b, _c = crux.eval([a, b, c])
print(f"Recovered parameters: a={_a[0]:.3f}, b={_b[0]:.3f}, c={_c[0]:.3f}")

Result

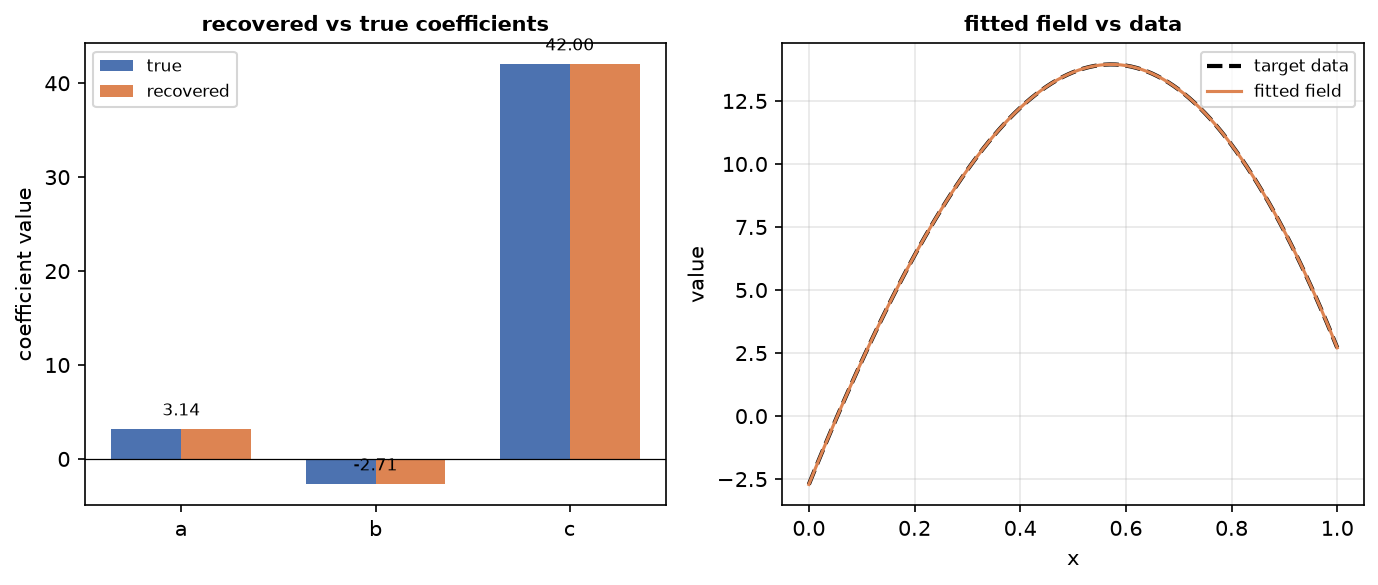

The optimiser recovers all three coefficients to essentially machine precision — \(a=3.140\), \(b=-2.710\), \(c=42.000\) (rel-\(L^2\) of \(\sim10^{-6}\) each) — and the resulting field lies on top of the target data (right).

What To Notice

• jNO can optimize more than neural fields.
• Inverse problems often reuse the same core workflow with different residual definitions.
• This example is a good template for coefficient discovery and calibration.

Going Further

For field identification (recovering a spatially-varying k(x,y) rather than a scalar), see the Inverse Problems guide, which covers:

• field.regularize(...) — smooth, TV, positivity and bounded penalties on identified fields
• Model.constrain(transform) — hard parameter constraints via paramax reparameterization
• jno.domain.from_array — attaching sparse sensor observations without file I/O

Download full script All tutorials

Script Snippet

"""05 — Inverse parameter identification"""

from pathlib import Path

import jax
import optax

import jno

π = jno.np.pi
A_true, B_true, C_true = 3.14, -2.71, 42.0

domain = jno.Path(0.0, 0.0).line_to(1.0, 0.0).curve(size=0.01).domain()
x, _ = domain.variable("interior")

target = A_true * jno.np.sin(π * x) + B_true * jno.np.cos(π * x) + C_true * x * (1 - x)

k1, k2, k3 = jax.random.split(jax.random.PRNGKey(0), 3)
a = jno.np.parameter((1,), key=k1, name="a")
b = jno.np.parameter((1,), key=k2, name="b")
c = jno.np.parameter((1,), key=k3, name="c")

residual = (a * jno.np.sin(π * x) + b * jno.np.cos(π * x) + c * x * (1 - x)) - target

for param in (a, b, c):
    param.optimizer(optax.adam(1e-2))

crux = jno.core([residual.mse])
crux.solve(30_000)

_a, _b, _c = crux.eval([a, b, c])
print(f"Recovered: a={_a[0]:.3f}  b={_b[0]:.3f}  c={_c[0]:.3f}    (truth: {A_true}, {B_true}, {C_true})")

rel_l2_a = float(jax.numpy.linalg.norm(_a - A_true) / (jax.numpy.linalg.norm(A_true) + 1e-8))
rel_l2_b = float(jax.numpy.linalg.norm(_b - B_true) / (jax.numpy.linalg.norm(B_true) + 1e-8))
rel_l2_c = float(jax.numpy.linalg.norm(_c - C_true) / (jax.numpy.linalg.norm(C_true) + 1e-8))

results_file = Path(__file__).parent.parent.parent / "tutorial_results.txt"
with open(results_file, "a") as f:
    f.write(
        f"05_coupled_and_inverse/inverse_parameter.py | epochs=30000"
        f" | rel_L2_a={rel_l2_a:.6e} | rel_L2_b={rel_l2_b:.6e} | rel_L2_c={rel_l2_c:.6e}\n"
    )

assert rel_l2_a < 1e-1, f"a rel_L2 too large: {rel_l2_a:.3e}"
assert rel_l2_b < 1e-1, f"b rel_L2 too large: {rel_l2_b:.3e}"
assert rel_l2_c < 1e-1, f"c rel_L2 too large: {rel_l2_c:.3e}"
