Linear-Elastic Cantilever Beam (vector FEM)
A real solid-mechanics solve: a slender cantilever (length \(L=10\), height \(H=1\)) clamped at the root and loaded by a downward shear traction on the tip. The unknown is the vector displacement \(u=(u_x,u_y)\).
Vector field + traction + isotropic elasticity
fem_symbols(value_shape=(2,), order=2) gives a P2 vector field (constant-strain TRI3 is too
stiff in bending). The weak form is the isotropic elasticity bilinear form
\(\lambda(\nabla\!\cdot u)(\nabla\!\cdot\phi)+2\mu\,\varepsilon(u){:}\varepsilon(\phi)\); the tip
load is a traction term, and the root is clamped with an all-component condition:
u, phi = d.fem_symbols(value_shape=(2,), order=2)
eu, ep = symgrad(u, [xi, yi]), symgrad(phi, [xi, yi])
weak = lam * trace(eu) * trace(ep) + 2.0 * mu * inner(eu, ep, n_contract=2)
traction = -1.0 * inner(jnp.array([0.0, -q]), phi.bind(x=xr, y=yr), n_contract=1)
fem = jno.fem([weak, u(xl, yl) - (0.0, 0.0), traction])
The interleaved solution is read with sol = solve(...).reshape(-1, 2) ([:, 0] = \(u_x\),
[:, 1] = \(u_y\)), aligned with fem.points.
What to notice
value_shape=(2,)makesua vector;vi.component(i)/[i]index components.- A traction is

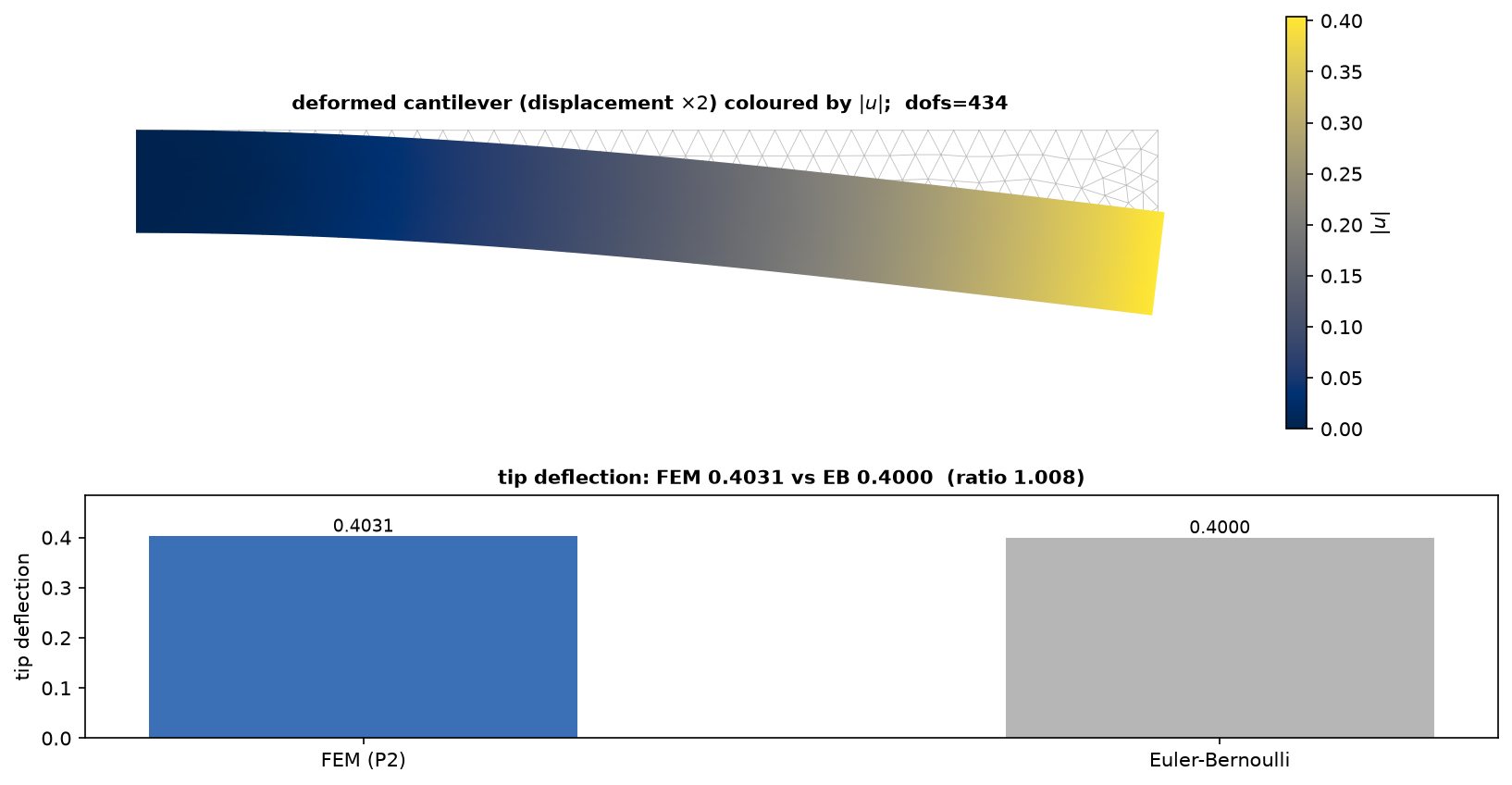

inner(t, phi.bind(<edge>), n_contract=1); an all-component clamp isu(root) - (0, 0). - The tip deflection matches Euler-Bernoulli \(\delta=PL^3/3EI\) to ~1% (a slender-beam approximation; Timoshenko & Goodier, Theory of Elasticity).
Full script
"""06 - Linear-elastic cantilever beam under an end load (vector FEM) via ``jno.fem``.
Isotropic plane-stress elasticity on a slender beam (length L = 10, height H = 1) clamped at
the root and loaded by a downward shear traction on the tip. The unknown is the vector
displacement u = (u_x, u_y) -- ``fem_symbols(value_shape=(2,))`` -- with P2 elements
(``order=2``; constant-strain TRI3 is too stiff in bending). The weak form is the isotropic
elasticity bilinear form lambda (div u)(div phi) + 2 mu eps(u):eps(phi).
The tip deflection is checked against Euler-Bernoulli beam theory delta = P L^3 / (3 E I).
EB is a slender-beam approximation (it ignores shear deformation and the clamped-end boundary
layer), yet a P2 solve on a 10:1 beam matches it to ~1% (Timoshenko & Goodier, *Theory of
Elasticity*, 1970). Linearity in the load is inherent to the linear operator.
"""
import jax.numpy as jnp
import numpy as np
from shapely.geometry import box
import jno
E, nu, L, H = 1000.0, 0.3, 10.0, 1.0
lam, mu = E * nu / (1.0 - nu**2), E / (2.0 * (1.0 + nu)) # plane-stress Lame parameters
Iz = H**3 / 12.0 # second moment of area (unit thickness)
inner, symgrad, trace = jno.np.inner, jno.np.symgrad, jno.np.trace
dense = lambda A: jnp.asarray(A.todense()) if hasattr(A, "todense") else jnp.asarray(A) # noqa: E731
d = jno.domain(box(0.0, 0.0, L, H), mesh_size=0.5)
u, phi = d.fem_symbols(value_shape=(2,), order=2) # P2 vector displacement
xi, yi, _ = d.variable("interior", split=True)
xl, yl, _ = d.variable("left", split=True) # clamped root
xr, yr, _ = d.variable("right", split=True) # loaded tip
eu, ep = symgrad(u, [xi, yi]), symgrad(phi, [xi, yi])
weak = lam * trace(eu) * trace(ep) + 2.0 * mu * inner(eu, ep, n_contract=2)
q = 0.1 # downward shear traction (0, -q) on the tip; total load P = q * H
traction = -1.0 * inner(jnp.array([0.0, -q]), phi.bind(x=xr, y=yr), n_contract=1)
fem = jno.fem([weak, u(xl, yl) - (0.0, 0.0), traction])
sol = jnp.linalg.solve(dense(fem.A), jnp.asarray(fem.b).reshape(-1)).reshape(-1, 2) # (n_nodes, 2)
tip = np.asarray(fem.points)[:, 0] > L - 1e-6
delta, eb = float(-jnp.mean(sol[tip, 1])), (q * H) * L**3 / (3.0 * E * Iz)
print(
f"\nCantilever (P2 elasticity): dofs={fem.dofs} FEM tip={delta:.4f} Euler-Bernoulli={eb:.4f} ratio={delta / eb:.3f}"
)
assert fem.is_linear and abs(delta - eb) / eb < 0.05 # matches beam theory to ~1%
